Start Localization

A full working example app is available for iOS and android. Run the MapActivity to see Nextome Sdk in action. It also contains a seamless outdoor/indoor map integration using OpenStreetMap for outdoor and Nextome Flutter Map for indoor.

Start localization

To start localization, call:

AndroidiOS

nextomeSdk.start()

Background Mode

On Android, Nextome can also keep track of user indoor position while the phone screen is off or the app is in background. For more info, explore the corresponding section here.

nextomeSdk.start()

Stop localization

When you've done, stop the localization by calling:

AndroidiOS

nextomeSdk.stop()

nextomeSdk.stop()

Observe SDK status

It's possible to observe the current state the Nextome SDK.

You can use this data to start initializing the map or showing messages to the users and update your UI accordingly.

AndroidiOS

val state: Flow<NextomeSdkState> = nextomeSdk.getStateObservable()
state.asLiveData().observe(this){state ->

}

let observer = nextomeSdk.getStateObservable().watch {state in

}

Warning

When you are no longer interested in observing the events, you must detach your listener so that your event callbacks stop getting called.

observer.close()

Nextome SDK State

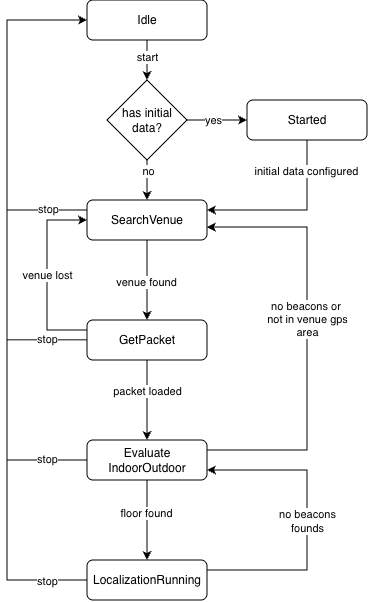

NextomeSdkState is a simple state machine that can have different states:

IdleState

Nextome SDK has been initialized but there is no active localization service running.

StartedState

Nextome has been correctly initialized and started, it's ready to scan beacons;

AndroidiOS

Property	Description
`isOutdoor: Bool`	Will always be `true` in this state

Property	Description
`isOutdoor: Bool`	Will always be `true` in this state

SearchVenueState

Nextome is currently scanning nearby beacons to determine in which venue the user is; If the SDK is stuck here, you're probably outdoor.

AndroidiOS

Property	Description
`isOutdoor: Bool`	Will always be `true` in this state

Property	Description
`isOutdoor: Bool`	Will always be `true` in this state

GetPacketState

Nextome knows the venue of the user and it's downloading from the server the associated resources (Maps, POIs, Patches...);

AndroidiOS

Property	Description
`isOutdoor: Bool`	Will always be `false` in this state
`venueId: Int`	The venueId of the venue found

Property	Description
`isOutdoor: Bool`	Will always be `false` in this state
`venueId: Int32`	The venueId of the venue found

FindFloorState

All the venue resources have been downloaded. Nextome is now computing in which floor the user is;

AndroidiOS

Property	Description
`isOutdoor: Bool`	Will always be `false` in this state
`venueId: Int`	The venueId of the venue found
`venueData: NextomeVenueData`	Contains all the resources (beacons, pois, maps, events, path and settings) for a specific venue.

Property	Description
`isOutdoor: Bool`	Will always be `false` in this state
`venueId: Int`	The venueId of the venue found
`venueData: NextomeVenueData`	Contains all the resources (beacons, pois, maps, events, path and settings) for a specific venue.

LocalizationRunningState

Nextome SDK is computing user positions. You can observe live user location using the observer nextomeSdk.locationLiveData;

AndroidiOS

Property	Description
`isOutdoor: Bool`	Will always be `false` in this state
`venueId: Int`	The venueId of the venue found
`venueData: NextomeVenueData`	Contains all the resources(beacons, pois, maps, events, path and settings) for a specific venue.
`mapId: Int`	Id of the map (floor) in which the user was localized
`tileZipPath: String`	The local path of the zip file which contains the tiles for the current map
`mapHeight: Int`	The height in pixel of the map
`mapWidth: Int`	The width in pixel of the map

Property	Description
`isOutdoor: Bool`	Will always be `false` in this state
`venueId: Int32`	The venueId of the venue found
`venueData: NextomeVenueData`	Contains all the resources(beacons, pois, maps, events, path and settings) for a specific venue.
`mapId: Int32`	Id of the map (floor) in which the user was localized
`tileZipPath: String`	The local path of the zip file which contains the tiles for the current map
`mapHeight: Int32`	The height in pixel of the map
`mapWidth: Int32`	The width in pixel of the map

It is possible to use tileZipPath, mapHeight and mapWidth to show the user a live map of the current floor. See more on Nextome Map integration docs.

Note

If the user changes floor, the SDK will resume from FIND_FLOOR state.
If the user goes outdoor, the SDK will switch to SEARCH_VENUE state until a new indoor beacon is detected.

Complete example

AndroidiOS

Example: getStateObservable()

nextomeSdk.getStateObservable().collect { state ->
        when (state) {
            is IdleState -> {
                showOpenStreetMap()
                updateState("Sdk is Idle")
            }
            is StartedState -> {
                showOpenStreetMap()
                updateState("Sdk Started")
            }

            is SearchVenueState -> {
                showOpenStreetMap()
                updateState("Searching Venue...")
            }

            is GetPacketState -> {
                showOpenStreetMap()
                updateState("Downloading venue ${state.venueId}...")
            }

            is FindFloorState -> {
                showOpenStreetMap()
                updateState("Finding current Floor on venue ${state.venueId}...")
            }

            is LocalizationRunningState -> {
                updateState("Showing map of floor ${state.mapId}...")
                showIndoorMap()
                setIndoorMap(state.tilesZipPath,
                    state.mapHeight,
                    state.mapWidth,
                    state.venuePackage.getPoisByMapId(state.mapId)
                )
                poiList = state.venuePackage.allPois
            }

            is ErrorState -> {
                handleError(state.exception)
            }
        }

    }

Example: getStateObservable()

    let watcher = nextomeSdk.getStateObservable().watch(){state in
        guard let state = state else {return }

        if state is IdleState{

            self.showOpenStreetMap()
            self.updateState(value: "Sdk is in Idle")

        }else if state is StartedState{

            self.showOpenStreetMap()
            self.updateState(value: "Sdk is Started")

        }else if state is SearchVenueState{

            self.showOpenStreetMap()
            self.updateState(value: "Sdk is searching for a venue")

        }else if let getPacketState = state as? GetPacketState{

            self.showOpenStreetMap()
            self.updateState(value: "Downloading venue \(getPacketState.venueId)...")

        }else if let findFloorState = state as? FindFloorState{

            self.showOpenStreetMap()
            self.updateState(value: "Finding current Floor on venue \(findFloorState.venueId)...")

        }else if let runningState = state as? LocalizationRunningState{

            self.showIndoorMap()

            var mapPois = runningState.venuePackage.getPoisByMapId(mapId: runningState.mapId)
            self.setIndoorMap(runningState.tilesZipPath,
                              runningState.mapHeight,
                              runningState.mapWidth,
                              mapPois)

            var allPois = runningState.venuePackage.allPois

        }

    }

Observe the user position

Nextome SDK offers an observable to listen to user position updates:

AndroidiOS

nextomeSdk.getLocalizationObservable().collect {
   log("Localized at (${it.x}, ${it.y}), on venue ${it.venueId} on map ${it.mapId})")
}

let observer = nextomeSdk.getLocalizationObservable().watch() {position in
            guard let position = position else {return}
            print("Got indoor position \(position.label ?? "-") (\(position.x), \(position.y), on map \(position.mapId) in venue \(position.venueId)")
}

Warning

When you are no longer interested in observing the events, you must detach your listener so that your event callbacks stop getting called.

observer.close()

NextomePosition

AndroidiOS

Property	Description
`x: Double`	The x coordinates of the computed position.
`y: Double`	The y coordinates of the computed position.
`venueId: Int`	The venueId of the venue found.
`mapId: Int`	The mapId (floor) of the computed position.
`label: String?`	A label associated with the position (see label in additional features).

Property	Description
`x: Double`	The x coordinates of the computed position.
`y: Double`	The y coordinates of the computed position.
`venueId: Int32`	The venueId of the venue found.
`mapId: Int32`	The mapId (floor) of the computed position.
`label: String?`	A label associated with the position (see label in additional features).

Observe errors

Nextome SDK uses different types of exceptions to report errors:

Exception Type	Description
`GenericException`	A generic error happened. The SDK will continue to work normally.
`InvalidCredentialException`	Nextome SDK was started with invalid credentials. Create a new instance of Nextome SDK with valid credentials and try again.
`Critical Exception`	Nextome encountered a critical exception. It is necessary to start a new session to start localization again.

It is possible to observe errors using getErrorsObservable():

AndroidiOS

nextomeSdk.getErrorsObservable().collect { error ->
    Log.e(TAG, "New error received: ${error.message}")

    when (error) {
        is GenericException -> {
            showMessageEvent(message = error.message)
        }

        is InvalidCredentialException -> {
            logOutAndShowLoginScreen()
        }

        is CriticalException -> {
            showMessageEvent(message = error.message)
            // Need to restart sdk
        }
    }
}

let errorWatcher = nextomeSdk.getErrorsObservable().watch(block: {error in
    guard let error = error else{
        return
    }
    if error is InvalidCredentialException{
        self.logoutAndShowLoginScreen()
    }else if error is CriticalException{
        self.showMessageEvent(message: error.message)
        //Need to restart sdk
    }else if error is GenericException {
        self.showMessageEvent(message: error.message)
    }
})
watchers.append(errorWatcher)

Next steps

Visit Background-service to learn how to use the SDK even when the app is not opened in the foreground.
Visit Nextome map integration if you want to use our library to display the indoor map.

Examples

A full working example app is available on iOS and android. Run the MapActivity to see Nextome Sdk in action. It also contains a seamless outdoor/indoor map integration using OpenStreetMap for outdoor and Nextome Flutter Map for indoor.
